An open-source tool that generates
regression tests for microservices using
recorded production traffic.

Automated Tests

High Fidelity Tests

Record production traffic to know exactly what traffic your microservice needs to handle and how

Fine-Grained Results

Fine-Grained Results

Understand how changes to your microservice will affect production traffic at a glance

Case Study

1. Introduction

Guardrail is an open-source “traffic replay” tool. It generates regression tests for stateless microservices using recorded production traffic. The tests run as out-of-process component tests and use service virtualization to ensure test determinism.

This case study explains the engineering problem Guardrail addresses, how it works, and some of the key technical challenges we encountered while building it. Before we get into those details, we want to explain the problem that we sought to address.

2. Testing Microservices

To understand Guardrail, let’s first talk about why developers want to test microservices.

We’ll base our conversation on the following hypothetical scenario. Aaron, a web developer, is responsible for maintaining an online store with the following service-oriented architecture.

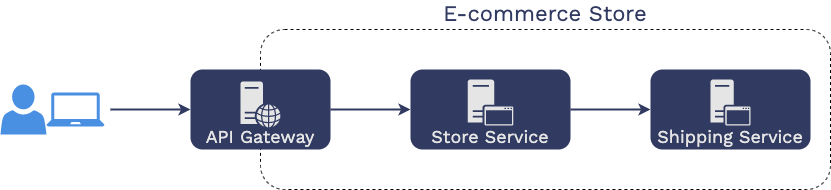

As you can see, in this architecture, requests from users first hit an API gateway, which then issues HTTP requests to the “store service,” which in turn issues its own HTTP requests to the “shipping service.”

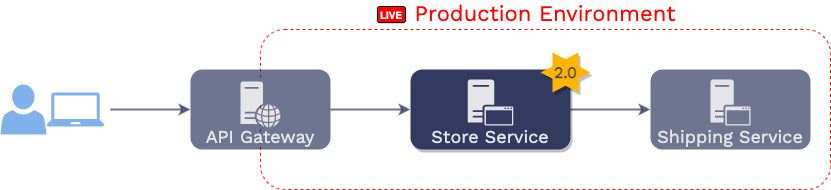

As the maintainer of the app, Aaron decides to make a change to the implementation of the “store service.” They run their unit tests on the changes they’ve made to the code, and then they deploy those changes into the production environment.

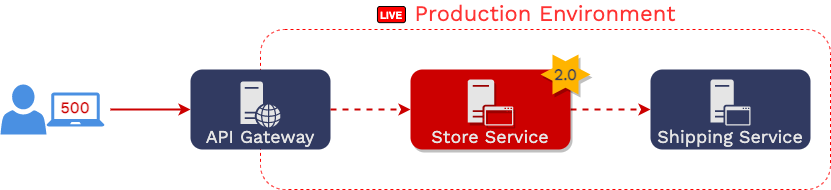

However, there is also the possibility that the updated code, once deployed, introduces unforeseen changes into the microservice as a whole, and the service starts to mishandle traffic in the production environment. If the application has low fault tolerance, mishandled requests could lead to other services failing and the entire system crashing. According to the 2019 State of DevOps Report (DevOps Research and Assessment), 15% of deployed changes cause production incidents that could lead to service impairment or service outage. Subsequently, they require remediation.

From this scenario, we know that Aaron needs to confirm that the new version of the microservice as a whole operates as expected. He needs to verify the quality of the deployed changes.

2.1 Testing in Production vs. Outside of Production

Now, Aaron needs to decide how to go about that test. There are broadly two categories for testing microservices: those run in production, which means the new code is deployed and tested using real traffic, and those done outside of the production environment, often using manually scripted traffic. Both types deal with recreating the environment and data.

2.1.1 Testing in Production

Testing in production aims to surface problems that cannot be detected in the pre-production environment (Shridharan). It gives confidence that a problem caught on a smaller scale won’t cause issues if fully deployed. Of course, this is not the only test that should be relied on.

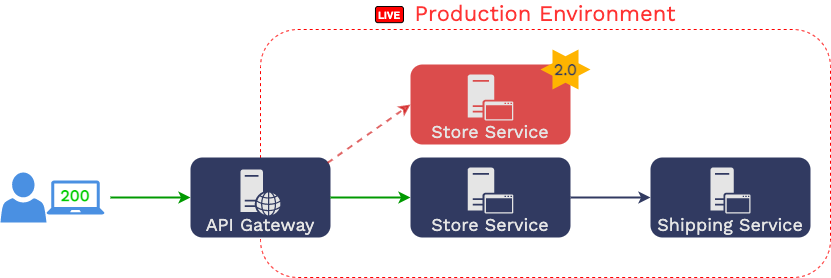

Testing in production takes many forms. One of the most common forms is canary deployment. If Aaron were to release the new version of the store service using a canary deployment, he would leave the original version of the “store service” running in production. Then, he would deploy an instance of the updated “store service” and then have a load balancer to split traffic meant for the “store service” between the two versions.

Aaron would then use his production environment’s error-monitoring tooling to assess the new “store service”’s functionality. If he doesn’t see a significant increase in errors, he can be reasonably confident that he can swap out the old version with the new version. Suppose he does see an increase in errors. In that case, he can reconfigure the API gateway to stop sending traffic to the “store service 2.0,” and the application will continue to operate with minimal interruption.

This approach improves Aaron’s previous course by limiting the “blast radius” caused by potential problems. Now, if the modified “store service” mishandles traffic, it will affect a small portion of production traffic instead of 100% of the traffic, and it will be easier for Aaron to roll back the changes he made. Google’s “Site Reliability Engineering" gives an example - “If we instead use a canary population of 5%, we serve 20% errors for 5% of traffic, resulting in a 1% overall error rate” (Google, Inc.).

Netflix employees Andy Glover and Katharina Probst share their experience with this approach: “Whenever you deploy a new version of your app, there are two things to keep in mind: first, are you (and/or your colleagues) able to watch the impacts of the deployment and available to remediate if need be? And second, should there be a problem with your rollout, are you limiting the blast radius to the fewest customers possible?” (Glover and Probst) Though effective, this approach requires careful planning and tooling. There needs to be an initial investment in observability to detect problems, and there needs to be strategies for rapid rollback. Testing in production alone, even with these valuable tools, is not perfect.

There are cases where mishandled production traffic could have significant repercussions, even if it’s a tiny portion of overall traffic. In highly regulated software industries like banking or medical record applications, a canary deployment mishandling a few requests could put a company in non-compliance. Or, even in Aaron’s e-commerce application, a few mishandled requests could result in the application overcharging some customers, and the business might not be willing to risk that happening.

Going forward, let’s say this is the case for Aaron, and his business cannot tolerate the risks involved with relying solely on testing in production. How can he make sure that the “store service” will behave as expected once he changes it? He needs to invest more in pre-production tests.

2.1.2 Testing Outside of Production

To figure out what the pre-production test would look like, let’s think about what Aaron is trying to do: He wants to replace an old version of a microservice with a newer version of that same service.

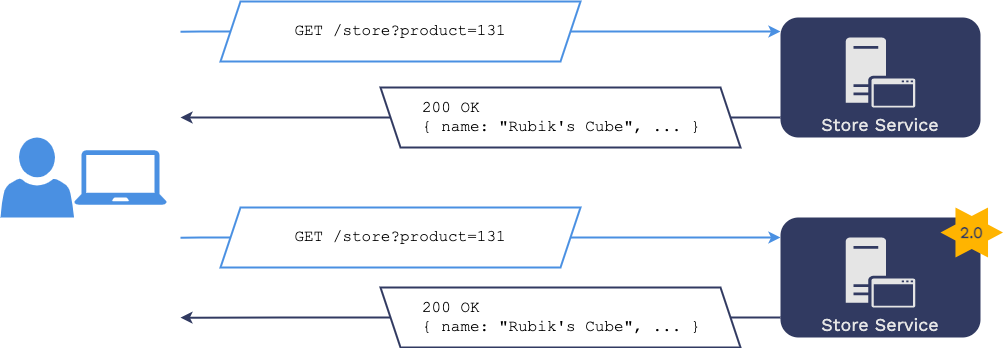

This means that we want to prove that any given request, when issued to the original version of the microservice or the new version of the microservice, will result in the same response. If that is the case, we can say that the recent changes haven’t broken anything.

This is called a regression test. We are not making changes to the e-commerce application such that the traffic handled by the “Store Service” changes. We assume that the new, updated version of the service will receive very similar traffic to the old version being replaced. Suppose the responses of the service under test and the deployed version for any given request have the same HTTP headers and body. In that case, the application should not be affected by replacing the old version with the new version.

Of course, there are many different ways a microservice can cause errors in production and many ways to catch those potential failures using tests (Toby Clemenson). Guardrail is exclusively focused on catching errors pertaining to the contents of HTTP responses.

Testing outside of production introduces the need for additional tooling - now that we are outside of production, we have to set up the testing environment such that it closely mimics production. In contrast, when testing in production, the service under test lives in the same environment as its “test data” and service dependencies. There’s no need to recreate the API requests and data. There’s no need to replicate the production environment.

2.2 Regression Testing Without Traffic Replay

We have established that a) we need to test the functionality of the “Store Service 2.0” as a whole, b) we need to run those tests outside of the production environment, and c) regression tests are a way to do that.

There are two challenges developers encounter when creating and running these regression tests:

  1. Generating requests to issue against the service under test
  2. Making downstream services available to the service under test

2.2.1 Generating Requests

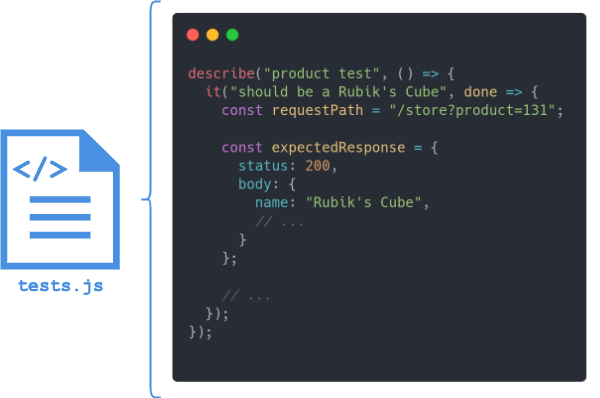

One common approach to this challenge is for the developer to manually script the requests based on their understanding of the business logic and API. In other words, the developer comes up with a set of HTTP requests to issue against the service under test and the response they expect for each request.

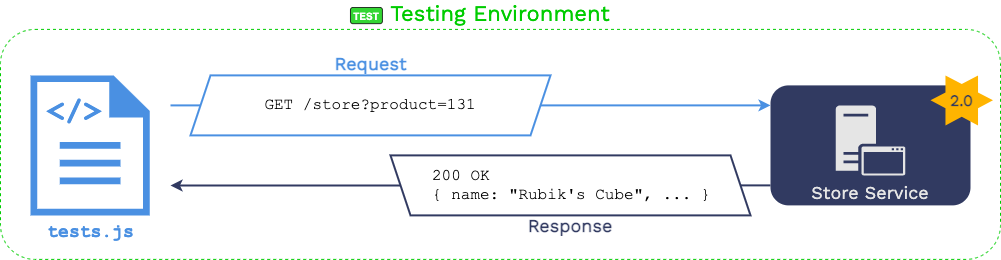

They then issue those requests against an instance of the microservice that they have spun up in a testing environment and compare the actual responses received from the service under test with the expected responses.

This approach may be adequate for applications that have simple APIs. However, the traffic a microservice is handling may be unpredictable. It is difficult for a developer to manually script requests that represent traffic the service will need to handle in production. It's not enough to script a single request, and you may need to script a sequence of requests to emulate a user's transaction. The developer needs to anticipate actual usage patterns. Not only that, he then needs to provide realistic test data.

On top of that, the tests become stale when the new API rolls out. Old tests need to be removed, and new ones have to be created. Manually writing and maintaining those tests is one of the challenges of regression tests.

2.2.2 Making Downstream Dependencies Available

The second challenge when creating regression tests is making downstream dependencies available to the service under test.

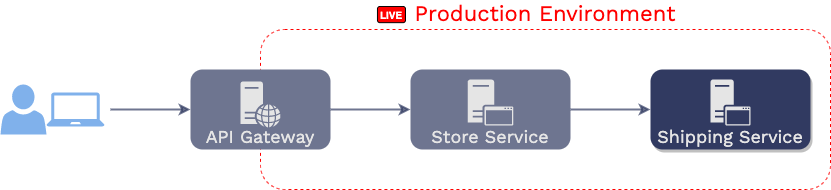

Recall the architecture of Aaron’s e-commerce application. The “store service” needs to issue requests to a “shipping service” to handle the traffic it receives from the API Gateway. In this case, the “shipping service” is a “downstream dependency” of the “store service.”

Downstream dependencies can be internal to an application, as is the case in Aaron’s e-commerce store, or they can be external to the application.

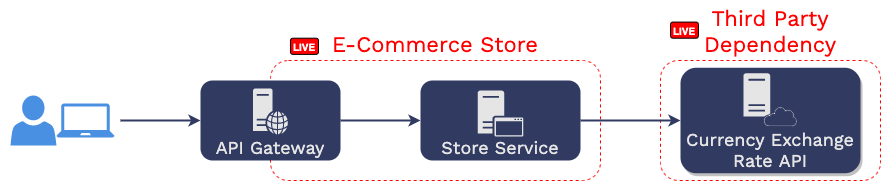

Example of a downstream dependency that is external to an
          application

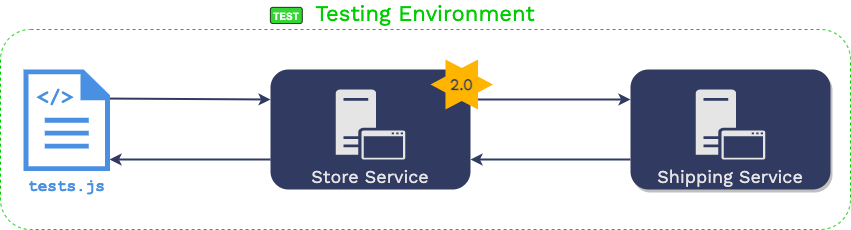

The approach to this challenge depends on whether the downstream dependency is internal to the application or hosted by a third party. If the downstream dependency is internal to the application, as is the case with Aaron’s e-commerce application, then it can be spun up in the same environment as the service under test.

This solution may work with a few simple downstream dependencies. If, for instance, they are easily contained in a docker container, it won’t take too much effort to spin up those dependencies in the testing environment.

However, it’s not practical for architectures with multiple, complex dependencies.

In terms of complexity, a dependency could be a SaaS application, which can’t always be run in a container for testing.

In terms of the number of dependencies, spinning up many microservices in the same testing environment makes that environment brittle. Many factors can cause problems, and it could be the integration settings, replication of configuration, or other things. “If your test needs to deploy a large number of services, there’s a good chance that one of them will fail to deploy, making tests unreliable.” (Richardson Section 10.3).

The other concern with spinning up many dependency services is that it requires teams to coordinate. One of the main advantages of having a distributed architecture is allowing teams to advance independently, but requiring them to correspond to run tests reduces each team’s independence.

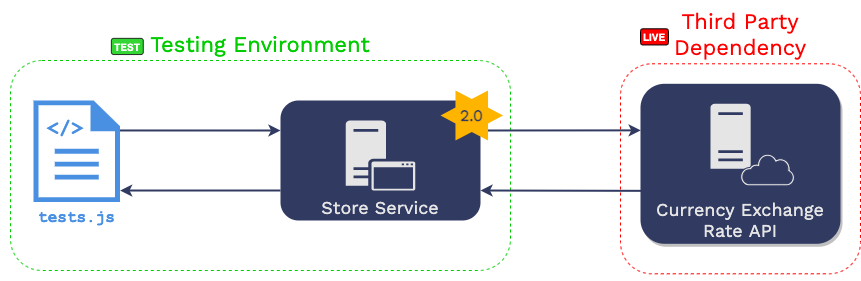

If the dependency is external to the application’s architecture, meaning a third party operates it, Aaron cannot spin it up locally. Instead, he can interact with the third-party dependency from his test environment. This only works if the third-party offers a testing API, is not rate-limited, or the effects will be inconsequential (for example, won’t charge anyone or send real emails).

The other challenge of testing with a third-party dependency is determinism. This solution will not work if the responses change over time. For example, suppose the dependency service during the test returns the current exchange rate of USD to euros. In that case, the data used by the service under tests will change every time the developer runs a suite of tests, making it impossible to predict what the expected response should be for that suite of tests.

Altogether, the challenges in testing a microservice before releasing it to production are complex for these reasons: How does a developer know what requests to issue against it? And how do they create an isolated testing environment without having to spin up multiple, complicated services? Traffic replay is a testing pattern intended to solve this problem.

2.3 Regression Testing with Traffic Replay

Let’s revisit the same two challenges addressed previously and how traffic replay can be used to make microservice testing more manageable and more robust.

2.3.1 Generating Requests using Traffic Replay

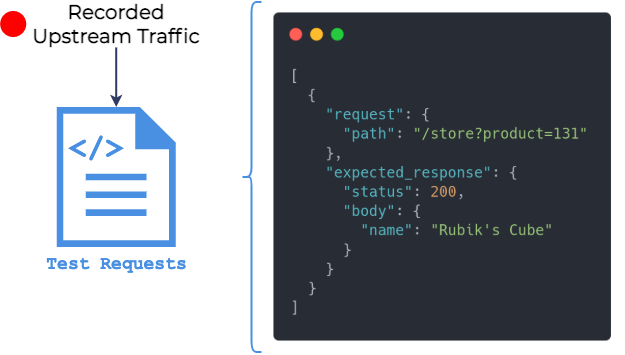

“Traffic replay” uses recorded production traffic as the set of both requests and expected responses. They are requests to issue against the service under test and the expected response for each of those requests. That is, Aaron adds instrumentation to the production environment...

...which creates a record of two things: 1) all of the requests sent to the “store service" during a specific time and 2) the "store service"’s corresponding responses for each of those requests.

The recorded requests from production are issued to the service under test in the testing environment. The responses are then compared with recorded responses from production.

Using traffic replay, the developer does not have to predict what production traffic looks like and how exactly the service under test should respond to that traffic. This makes traffic replay a good fit for creating regression tests when production traffic is complex and unpredictable.

2.3.2 Making Downstream Dependencies Available using Service Virtualization

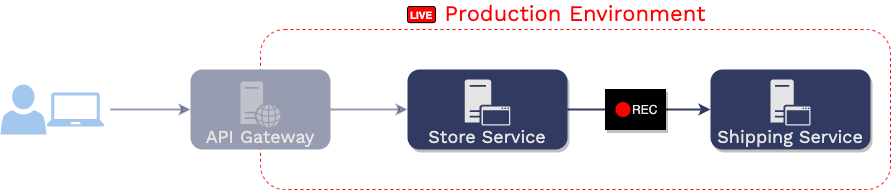

“Service virtualization” also makes use of recorded production traffic, except this time it is traffic “downstream” of the microservice to be updated. That is, it records all outgoing requests from the “store service” in production and the corresponding responses from downstream dependencies.

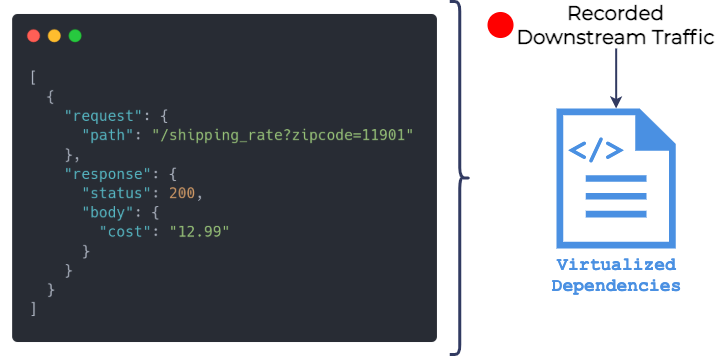

That data is then used to “virtualize” each dependency. Virtualization means that a process is started in the testing environment for each downstream dependency. When that process receives an HTTP request, it searches the recorded downstream production traffic for an identical request that happened in production. When it finds that request, it issues the corresponding response that the “store service” received in production.

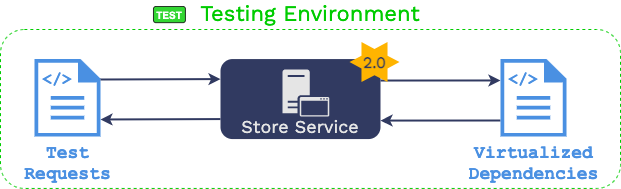

Instead of spinning up an entire set of microservices in a testing environment, which can be a long, complicated process, the developer spins up a single process for each downstream dependency. This avoids the potential integration settings and configuration problems associated with spinning up many services in a testing environment.

Virtualizing dependencies is a good fit for testing microservices that have many downstream dependencies which cannot be all spun up in the same environment:

  • It makes it possible to run tests on microservices with third-party dependencies. The responses for a given request will be the same each time the test is run.
  • There’s no need to rely on that third-party’s rate limit or availability.
  • It makes the tests repeatable. The data for each test will be the same each time the test is run.

3. Why We Built Guardrail

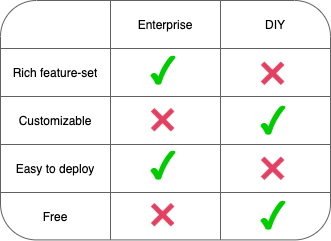

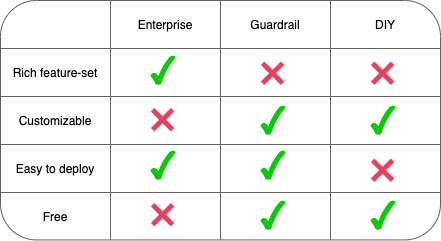

Developers wanting to use traffic replay in their microservice testing strategy can either purchase an enterprise product or build their own solution using a collection of open-source tools. Currently, one of the leading enterprise options is Speedscale. Speedscale combines upstream and downstream traffic replay in a single solution and provides additional features such as load testing and chaos engineering.

If a company didn’t want to pay for a full-featured solution like Speedscale, they could create one themselves using a combination of already existing open-source tools. GoReplay or StormForge’s “VHS” can be used to replay upstream traffic, and WireMock, Mountebank, or Nock can be used to virtualize services.

While many open-source tools are well built and well supported, fully isolating a microservice with basic traffic replay functionality requires coordinating multiple such tools so that they perform cohesively across multiple environments; this is not a trivial task. For example, upstream and downstream traffic recording must be started and stopped simultaneously for traffic replay and service virtualization to work in tandem. In addition, current open-source traffic replay tools do not compare recorded responses with test responses, meaning developers would need yet another tool to “diff” the two responses to detect deviations.

If a small team maintains an application, they may not need the advanced features of an enterprise traffic replay tool, and they may not have the time to develop their own. This is the use case for Guardrail. It is not as feature-rich as an enterprise product like Speedscale, but it is easier to deploy than the DIY options, making it a good fit for small teams to validate the production readiness of the newly upgraded services.

4. What is Guardrail

Guardrail is an open-source tool that generates regression tests for microservices using recorded production traffic. It combines traffic replay and service virtualization to test a microservice in isolation.

There are three core functionalities to Guardrail:

  1. Record traffic in the production environment
  2. Replay traffic in the testing environment
  3. Report the results from the testing environment

5. Using Guardrail

Let’s walk through a typical workflow for a developer using Guardrail.

5.1 Record

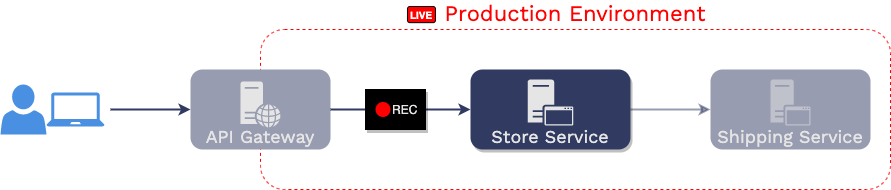

The first step is to record traffic upstream and downstream of the microservice in production that we are working on changing.

5.1.1 Verify Application Meets Requirements

There are a few requirements an architecture must meet before Guardrail can be deployed.

First, network traffic between microservices must be unencrypted. This scenario typically will involve a firewall and a gateway that separates the private and the public internet. Nginx as an API gateway with TrueCrypt is a basic example of this scenario. It is possible to use Guardrail with encrypted traffic, but the developer must add their own TLS termination proxy.

Secondly, the application must use the “correlation ID” pattern to trace requests (Microsoft and contributors). A “correlation ID” is a unique HTTP header value attached to a request when it passes into an application’s private network.

Thirdly, the use case is limited to non-persisted stateless services that are purely for data transformation.

Finally, it must match the architecture's communication pattern and protocol. Guardrail can work with architectures with (synchronous) HTTP communication patterns using a combination of REST and JSON. It doesn't work with asynchronous communication patterns that use HTTP Polling or message queues.

5.1.2 Installation in a Production Environment

Install GoReplay, Mountebank, and Guardrail on the production machine of the microservice you will eventually be changing.

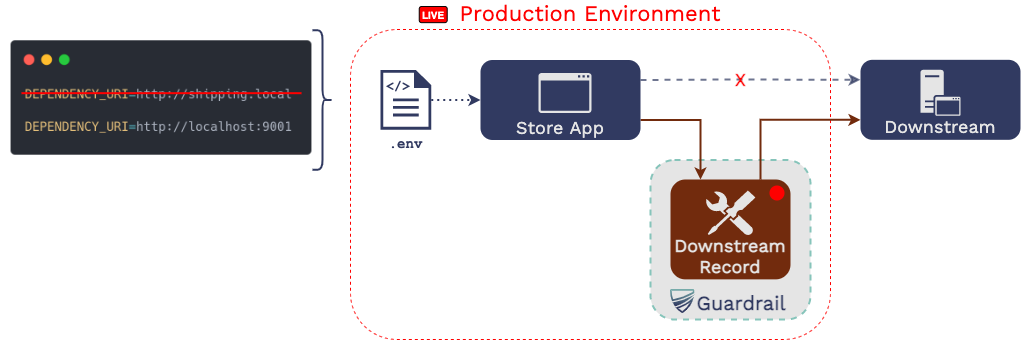

5.1.3 Change URLs of Downstream Dependencies

Traffic between the microservice and its downstream dependencies is recorded using a proxy, so the URLs the microservice uses to address those dependencies must be changed to the URLs of the proxies.

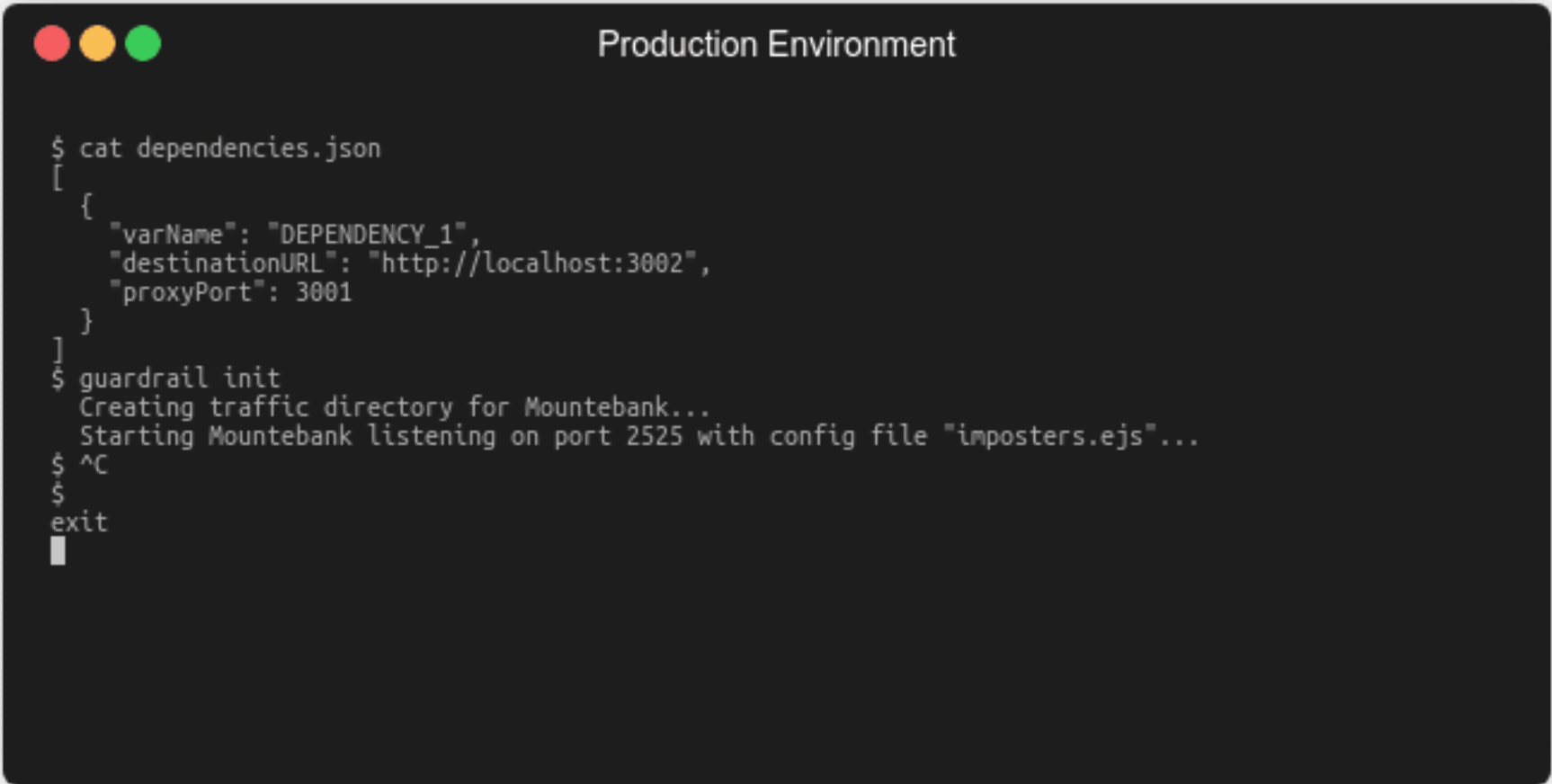

The developer changes the URLs by declaring a list of downstream dependencies and then running the commandguardrail init.

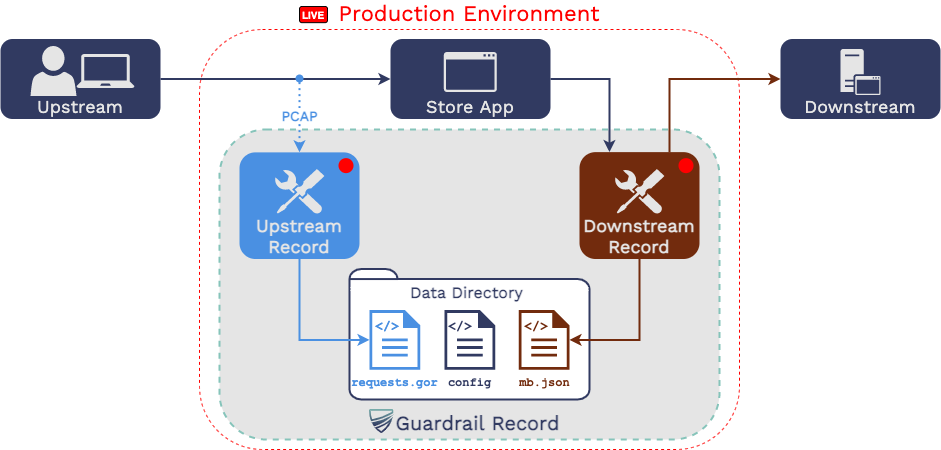

5.1.4 Start Recording

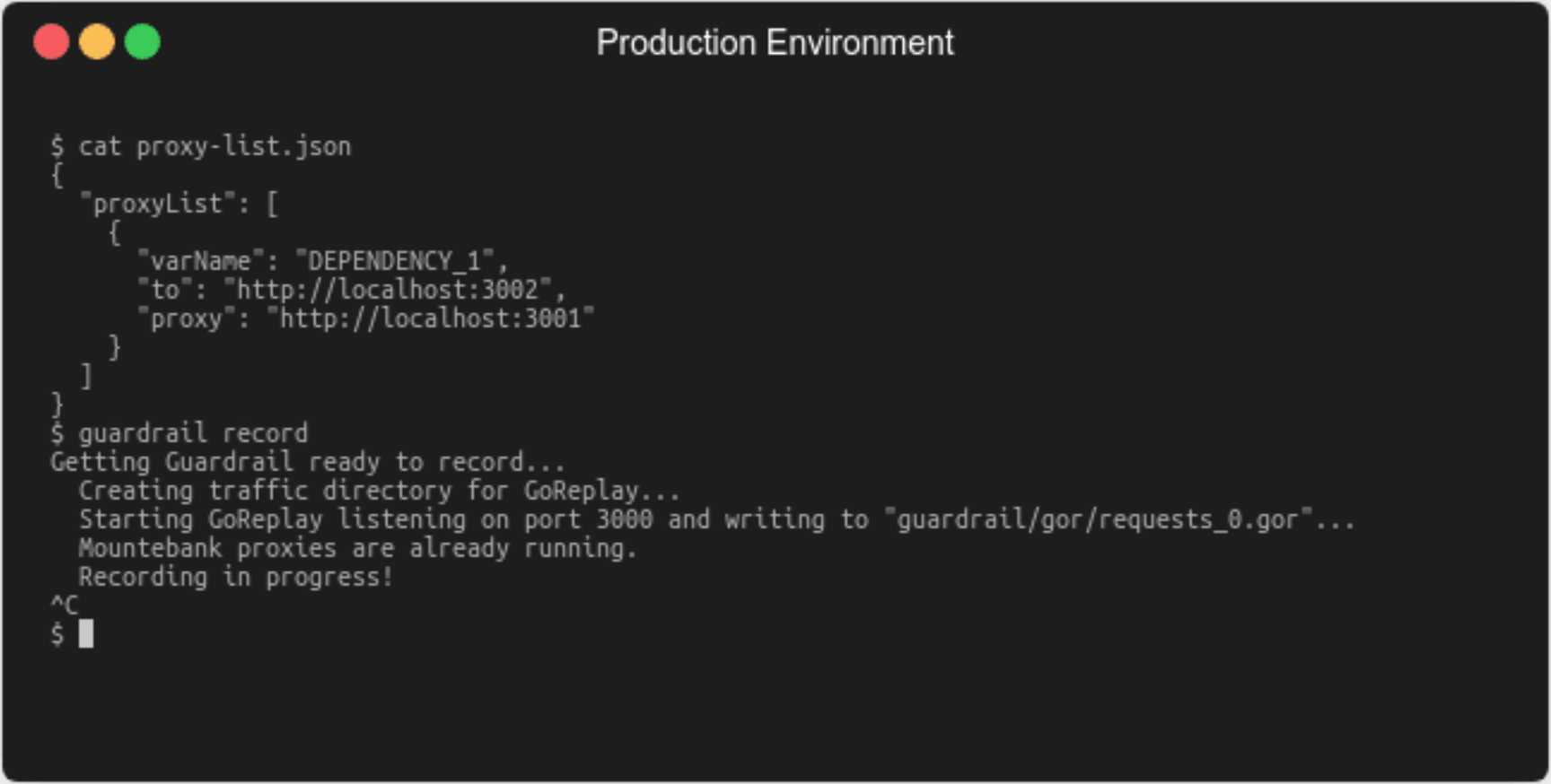

The developer then uses the guardrail record command.

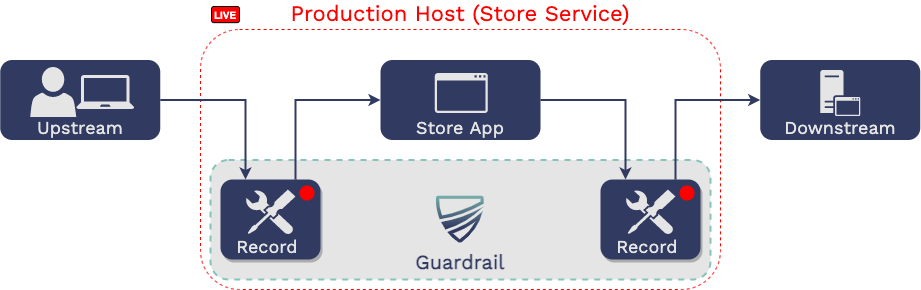

From that point on, GoReplay is recording upstream traffic and Mountebank is recording downstream traffic. Traffic is recorded to the production host’s file system.

5.1.5 Stop Recording

The developer can then stop upstream and downstream traffic recording by quitting Guardrail (^C). Finally, the URLs addressing the downstream recording proxies should be reverted to the URLs that point directly towards the downstream dependencies.

5.2 Replay

5.2.1 Setup the Testing Environment

The developer then downloads GoReplay, Mountebank, and Guardrail to whatever machine they will run their tests on. We will assume that the machine is the developer’s local machine.

They then spin up the updated microservice (in Aaron’s case, “store service 2.0”) on that machine. The microservice should be configured using the same URLs used by the microservice in production during recording. If it is configured with addresses of the actual dependencies, the service under test will issue requests to the real production dependencies..

5.2.2 Data Transfer

Next, the developer manually transfers the files of recorded traffic from the production host to the host of the machine running the testing environment.

5.2.3 Replay Traffic

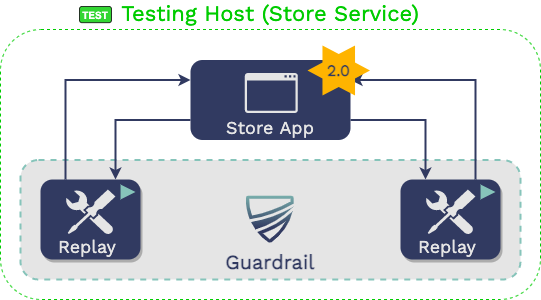

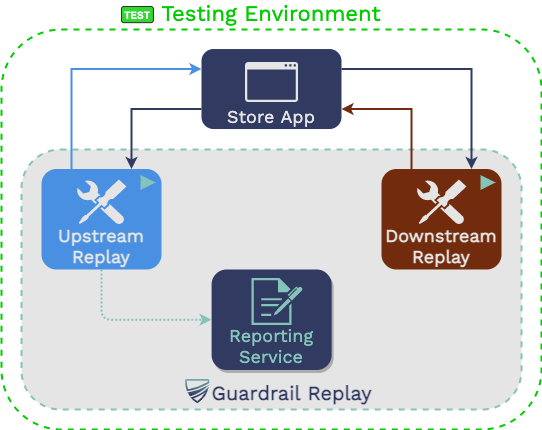

The developer then runs the guardrail replay command in the testing host. This starts up the Mountebank virtualized services using the data collected from production and then replays the upstream requests against the service under test using GoReplay. It also starts up a component of Guardrail called the “Reporting Service,” which becomes relevant in the next section.

The same traffic recording can be replayed multiple times, allowing developers to iterate on the service under test without having to re-record traffic.

5.3 Report Results

3.1 Calculate and View Results

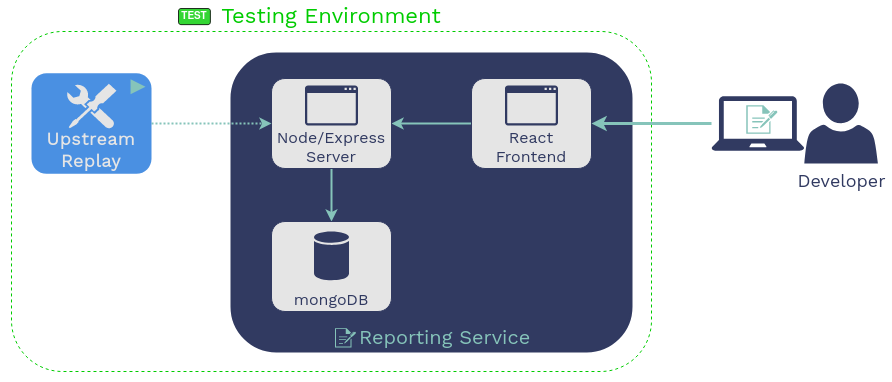

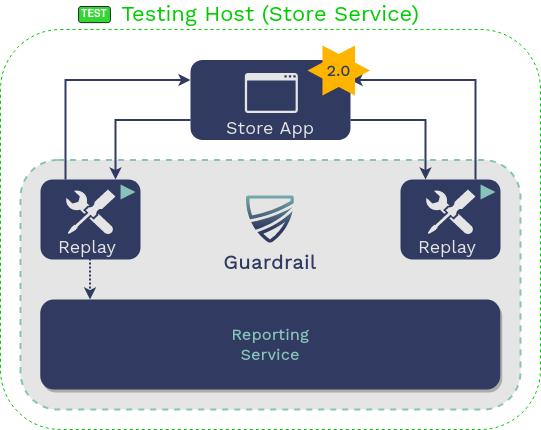

In addition to storing traffic data in a database, the Reporting Service calculates the results of a replay session and serves the results to the Guardrail user interface. Results are a comparison of the actual and expected HTTP response status, headers, and JSON body.

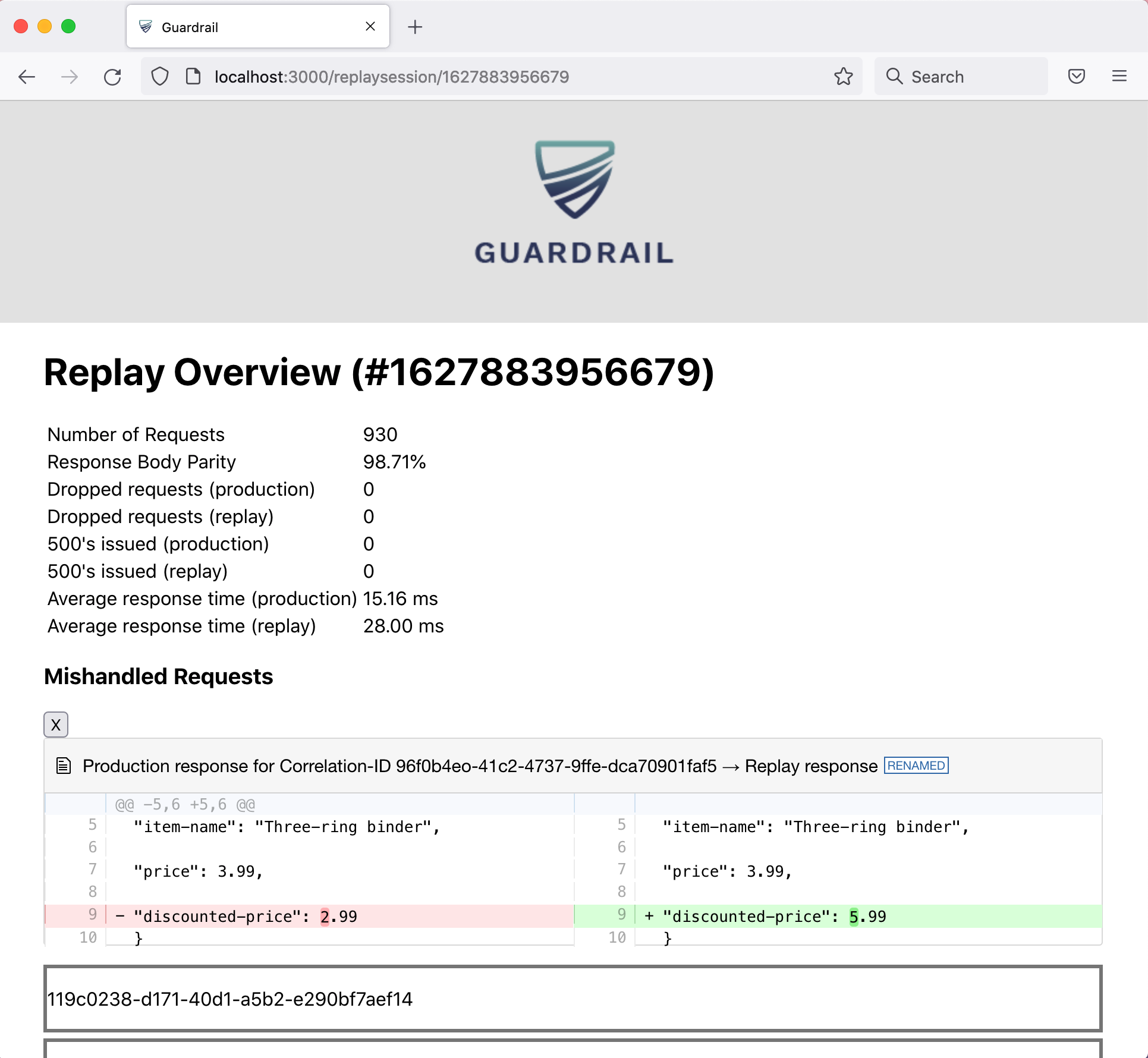

Once a replay session finishes, the developer can access the user interface from a web browser of the machine running the test environment. Requests that had different responses from what was recorded in production are listed, along with the expected and actual responses.

6. Design Decisions

There are many ways to build a tool like Guardrail. Here are some of the “forks in the road” we encountered when building Guardrail and the reasoning behind the directions we chose.

6.1 Inserting Upstream Recording Instrumentation

One of the first significant design decisions we encountered was which tool to use for recording traffic. There are two leading approaches to recording traffic of a single microservice in the production environment: proxy and packet capture (PCAP).

6.1.1 HTTP Proxy

The aptly named proxy approach requires starting an application-level proxy server to sit in front of your microservice. The proxy server handles recording incoming and outgoing traffic that passes through it. All incoming traffic must be directed to the proxy server instead of your microservice. Building it is relatively simple, although redirecting traffic may not be.

With this approach, consumers of the “store service” must connect to the proxy instead. A server listens on a specific port, and the combination of that binding port and the host IP makes the server addressable in the network. A proxy will have a new address, and clients must connect to it temporarily.

If there is only one upstream client, that might be ok. But we don't know how many client services connect to a microservice.

One could potentially address this complication with DNS. Changing DNS records can redirect traffic, and a local DNS resolver can divert traffic to a different host. It won't point to the same host with a different port, though it can still work.

However, managing DNS records is problematic without integrating them into an orchestration system or leaving it up to the user to manage. Without it, there are very few assumptions we can make about the underlying infrastructure.

Let’s consider the other approach.

6.1.2 UNIX PCAP

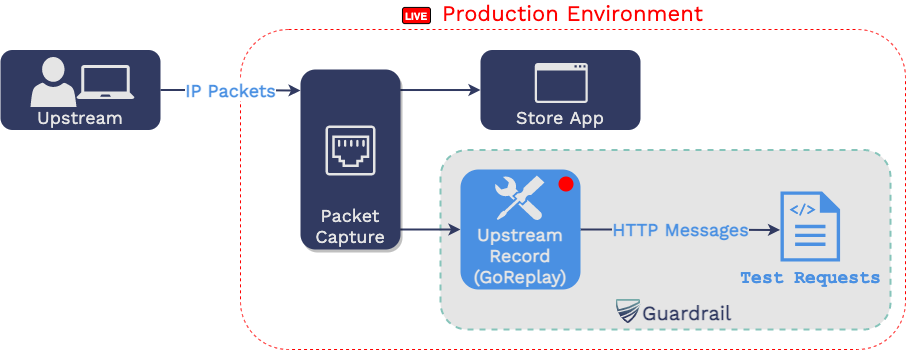

Alternatively, packet capture doesn't require any additional infrastructure or redirection of traffic. You run a packet capture process on your production server, and it watches a specific network interface and records traffic from incoming connections.

Unlike application proxies, packet capture does not have direct access to HTTP messages. IP packets are duplicated on the host's network interface. But, IP is a lower-level protocol, so an extra step has to bring the IP payload to the application layer. This step assembles the packet payloads to get the TCP segments and then eventually to HTTP messages.

There are open-source tools that take advantage of packet capture and bring the IP payload to the application layer - GoReplay being one of them. GoReplay has the added advantage over other PCAP tools because it can replay recorded traffic.

Because application proxies are more disruptive, we decided to go with a packet capture approach with GoReplay.

6.2 Inserting Downstream Recording Instrumentation

There are different considerations when it comes to deciding how to record requests between the microservice in production and its downstream dependency services. We have to use a proxy because we can't use packet capture.

Packet capture is no longer an option for recording downstream dependencies because it works only on a specified port. It's suitable for published server ports that are static but not good for HTTP clients. As an HTTP client, a random non-standard ephemeral port is used to establish a connection, and this is why we have to rely on a proxy to record downstream traffic.

Without packet capture, using proxies to record traffic becomes the most promising approach, which begs the question: how do we direct traffic away from the dependency to the proxy?

One of these three will need to be changed:

  • The HTTP client library
  • The local DNS records of the dependencies
  • The configuration of the dependency URLs

Changing the library used to issue HTTP requests would require code modification for the microservice. The open-source tool, Nock, can be used to accomplish this in microservices written in JavaScript, and VCR can be used in microservices written in Ruby. The main tradeoff of this approach is that we'd be restricted to testing microservices written in languages that those tools can support, and we would require additional changes to their code. We would rather use a solution that occurs out-of-process.

We considered redirecting traffic through DNS, but this needs to be managed externally, which may be unwieldy. Redirecting traffic this way will require changing the DNS record for a downstream dependency to point to a different IP. Each recording proxy for a virtual dependency may have to be hosted on different IPs because DNS can only redirect to a different IP but not redirect to a different port.

In addition, the process of modifying DNS records differs greatly according to how an application is deployed. Some applications deployed on AWS are able to interact with their DNS using Route 55, some using Kubernetes can interact with a cluster’s DNS using CoreDNS, while some do not have an easy way to modify DNS records at all. We opted for a solution that is not limited to a particular deployment strategy.

Changes to the configuration file are easier to manage compared to the first two methods. Unlike the HTTP library, this will only be a configuration change and not a code change. But of course, there is an added user step and we need to assume the convention of extracting URLs for downstream dependencies into configuration files (Wiggins).

To use Guardrail then, the user will have to change the service configuration manually for the recording duration. Changing the URL in the configuration redirects traffic, and reverting the changes redirects traffic back.

6.3 Coordinating Upstream and Downstream Recording

Being able to record upstream and downstream traffic is not enough to create meaningful tests. The data collection procedure needs coordination. Specifically, the downstream recording must start before upstream is started and upstream recording must stop before downstream is stopped. Otherwise, the virtualized dependencies will be issued requests that they don’t have the data to respond to and the tests will fail.

Expressing this visually, if the downstream recording is stopped while upstream recording continues...

uncoordinated recording

...then all of the tests generated by those later requests will fail.

uncoordinated replay

Our solution takes advantage of the fact that GoReplay and Mountebank both run on the same host as the microservice in production. Because GoReplay and Mountebank run on the same host, we are able to orchestrate their behavior by creating scripts executed using the host’s CLI. This saves the developer from having to know how to coordinate upstream and downstream recording and replay, simplifying the process to one “record” command in production and one “replay” command in testing.

6.3 Correlating Upstream Traffic with Downstream Traffic

Virtualized services do not know how to disambiguate between multiple requests with the same signature.

When replaying traffic against the service under test, one expects some responses to be different from the responses recorded in production. Guardrail is built to catch those differences. However, we found that some responses occurring during replay contained data that pertained to the wrong request.

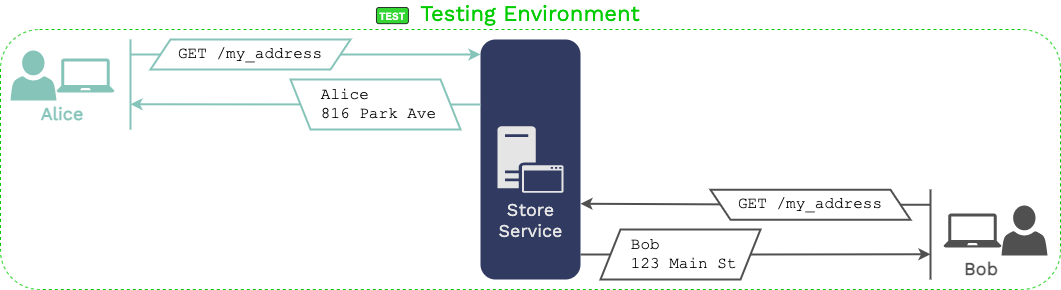

Expected test results
Expected test results

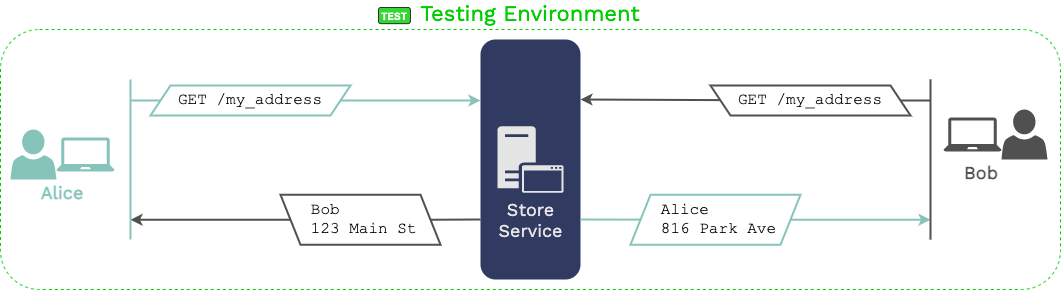

Actual test results
Actual test results

This traffic mismatch only occurs with identical requests that happened concurrently in production. If the recorded requests in production have different paths and are spaced out over time, there is no traffic mismatch.

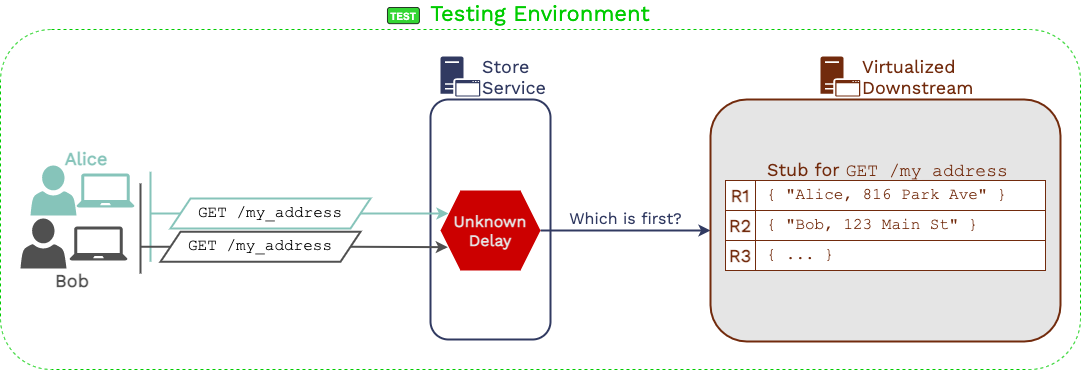

This error is a result of how Mountebank works when replaying traffic. When Mountebank is in “replay” mode, it pattern-matches an incoming request to a stub. The matching stub then generates an HTTP response from a list of one or more recorded responses.

If there is more than one recorded response for a given request, Mountebank, on each subsequent matching request, will iterate through its list of recorded responses, starting over once it reaches the end. If a dependency in production responds to requests in the order it receives those requests, then Mountebank will respond to every request correctly in “replay.”However, dependencies are not guaranteed to respond to requests in the order that they receive them.

This is a problem when Mountebank relies on the order the responses occurred in production when deciding how to respond to multiple identical requests. To prevent this, we need a way to tie together related upstream and downstream traffic so that Guardrail recognizes them as a single thread.

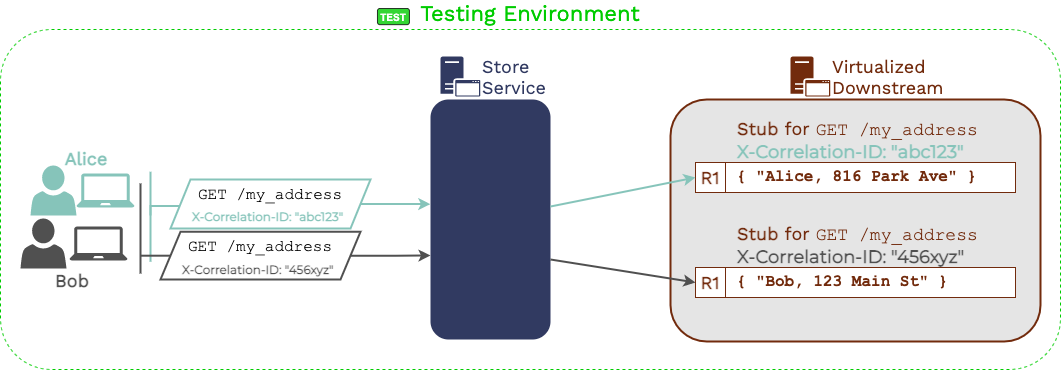

Our solution was to require applications using Guardrail to use correlation IDs in their back-end traffic. An “X-Correlation-ID” HTTP header is a unique request identifier for every incoming user request. Devices on the request path add this header as early as possible, and they pass them along the entire request/response cycle, both upstream and downstream. API gateways or web servers such as NGINX and Apache support this feature, though the naming varies slightly.

When recorded traffic has a correlation ID pattern, there no longer is such a thing as “identical requests.” Each request issued to a dependency has exactly one associated response, so there is no possibility for out-of-order production traffic to lead to mismatched traffic in testing.

6.4 Collecting Data in One Place

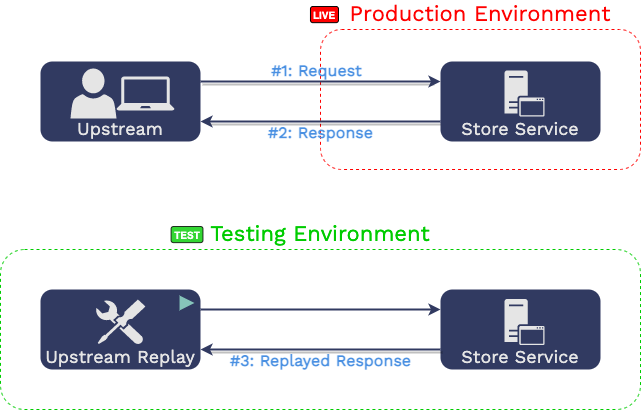

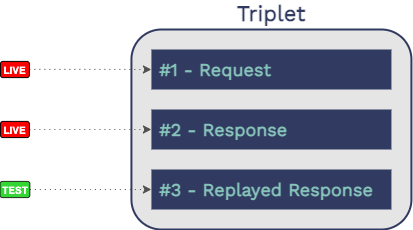

There are three critical pieces of information when it comes to testing microservices using production traffic:

  1. The recorded user request from the production environment
  2. The recorded response to the user from the production environment
  3. The replayed response from staging (what our service under test responds with when we replay the recorded user request).

For Guardrail’s use case, none of this data is very useful in isolation. We need all three of these pieces combined into a single unit that we can evaluate. We refer to this three-part unit as a “triplet.”

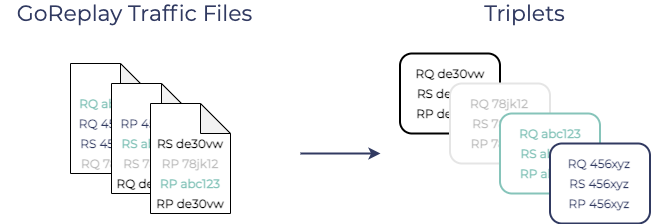

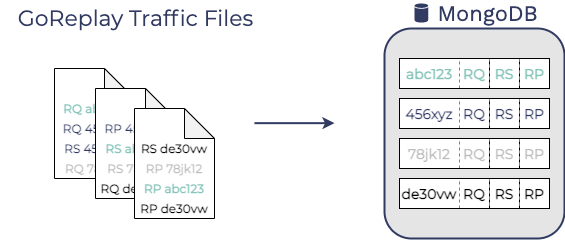

Conveniently, GoReplay outputs a file containing this information after replaying recorded traffic. However, it does not group the information into meaningful triplets. Production requests, production responses, and replayed responses are all mixed together in the file.

If we were to use that file, we would need to read each GoReplay traffic file into memory, parse the data, and group the entries into triplets using their correlation ID.

The alternative was to use GoReplay’s middleware to process components as they arrive and forward them to Guardrail’s reporting service, where they’re assembled into triplets and compared to generate a final report with test results.

Comparing these two options, processing components using middleware is computationally less intensive than parsing files and matching components based on correlation ID.

7. Future Work

We designed Guardrail to solve the current use case we envisioned. However, we did notice some areas we can improve on for future iterations.

7.1 Encryption

Encryption was not the core problem on the initial implementation, but it's among the more critical parts to address. The industry broadly recognizes that encryption of user data should happen by default.

We want to add a solution to transfer data across environments securely, encrypt it at rest, and provide access control for developers and operators.

7.2 Diffing Outbound Requests

Currently, the regression simulations are only on the API consumer side. We want to add the ability to show unexpected downstream requests associated with an upstream request.

7.3 Toggle Simulating Response Times

We would like to add the ability to toggle the ability to simulate the downstream response times.

There are tradeoffs between test execution time and seeing the response time comparison of test and record traffic. If you emulate response time, the test will run longer, but you can't see the comparison and vice versa.

7.4 Filtering Requests

Another thing we can easily add is the ability to filter requests. Guardrail is aimed only at non-persisted microservices, but potentially, this filter could allow testing on a particular database snapshot. Using Guardrail in microservices with databases needs further investigation.

7.5 Comparison Middleware

Guardrail checks the payload's deeply nested body by comparing attributes in the JSON payload. This comparison may not fit all use cases.

If the payload returned by the service under test includes a timestamp, there would be a different result. The test case would fail even though the body produced is correct except for the timestamp having another value.

There's no way of knowing in advance if and where the timestamp would be included. If we do, we can skip it from the comparison. There's no universal format for timestamps that we can filter out.

Future work may consider using the Levenstein distance algorithm to compare how close the two responses are from each other (Cuelogic). Alternatively, we could give the testers the ability to define which response is considered a fail or a pass through an optional middleware.

8. Conclusion

Guardrail is a tool designed to test stateless non-persisted microservices limited to data transformation tasks using synchronous HTTP communication. With that use case, we can test using only traffic replay and service virtualization.

We identified the main challenges of testing a microservice, and they center around creating test data and recreating the environment. Creating test data needs a good understanding of the API, and those tests need to be separately maintained. Furthermore, the environment needs to be emulated with service virtualization.

We believe we've built Guardrail into an open-source tool that is well-positioned to deliver significant testing value to engineering teams in charge of budding microservices. The core value provided by Guardrail is that it abstracts and automates much of the complexity and tedium involved with implementing and maintaining good, accurate regression tests for microservices. We hope that Guardrail can help you prevent your deployed changes from being in the 15% that cause a production incident.

9. Bibliography

  1. Cuelogic. “The Levenshtein Algorithm.” https://www.cuelogic.com/blog, 2017, https://www.cuelogic.com/blog/the-levenshtein-algorithm. Accessed 14 September 2021.

  2. DevOps Research and Assessment. “2019 State of DevOps Report.” https://www.devops-research.com/research.html#reports, 2019, https://services.google.com/fh/files/misc/state-of-devops-2019.pdf. Accessed 14 September 2021.

  3. Glover, Andy, and Katharina Probst. “Tips for High Availability.” https://netflixtechblog.medium.com/, 2018, https://netflixtechblog.medium.com/tips-for-high-availability-be0472f2599c. Accessed 14 September 2021.

  4. Google, Inc. “Site Reliability Engineering.” https://sre.google/books/, O’Reilly, 2018, https://sre.google/workbook/canarying-releases/. Accessed 14 September 2021.

  5. Microsoft and contributors. “CSE Code-With Engineering Playbook.” https://microsoft.github.io/code-with-engineering-playbook/, https://microsoft.github.io/code-with-engineering-playbook/observability/correlation-id/. Accessed 14 September 2021.

  6. Toby Clemenson. “Testing Strategies in a Microservice Architecture.” https://martinfowler.com/microservices/, 2014, https://martinfowler.com/articles/microservice-testing/. Accessed 14 September 2021.

  7. Richardson, Chris. Microservices Patterns. Manning Publications, 2019.

  8. Sridharan, Cindy. “Testing in Production: the hard parts.” https://copyconstruct.medium.com/, 2019, https://copyconstruct.medium.com/testing-in-production-the-hard-parts-3f06cefaf592. Accessed 14 September 2021.

  9. Wiggins, Adam. “The Twelve-Factor App.” https://12factor.net/, https://12factor.net/config. Accessed 14 September 2021.

Presentation

Meet our team

We are currently looking for opportunities. If you liked what you saw and want to talk more, please reach out!

  • James Duot

    James Duot

    Los Angeles, CA, USA

  • Jordan Thomas

    Durham, NC, USA

  • Tim Cummings

    Nashville, TN, USA
